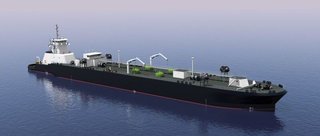

Jensen Maritime’s liquefied natural gas (LNG)-bunkering articulated tug-barge (ATB) design has been granted “approval in principle” by the American Bureau of Shipping (ABS). Jensen’s vessel concept, which is classed as an A1 Liquefied Gas Tank Barge, is now designated as being compliant in principle with ABS rules and guides.
Designed for mobile bunkering, Jensen’s ATB is also oceans rated, meaning that it is not limited to the intracoastal waterways, like many other similar types of LNG ATBs. The design allows the vessel to facilitate the transfer and use of small-scale LNG in places with limited infrastructure, including offshore locations.
The ATB will be built with four 1,000-m3 Type C LNG tanks (seven bar working pressure), enough LNG to fill up a large containership twice before having to replenish its own supply. This capacity, combined with flexible operational areas, makes it practical for a customer who has significant LNG needs at one or more ports not located near an LNG terminal.
“This vessel is exciting for so many reasons, but perhaps most notably because it offers a solution for the maritime industry, which struggles with whether to develop LNG infrastructure or vessels first,” said Jensen’s Johan Sperling, vice president. “This unique concept offers customers an economical alternative to sourcing LNG terminals or trucking LNG to multiple ports. Additionally, the design was developed using Jensen’s proprietary production engineering capabilities, which makes the construction and assembly more efficient. It’s an incredible package.”
The barge measures 360'x60'x35', with a combined tug-and-barge length of 452'. The tug (under 500 GT U.S. regulatory) features two GE 6L250 engines (Tier 3), each offering at least 2,035 hp, and two Rolls Royce 205 Z-drives, with a speed of 12 knots. The ATB will carry 30,800 gals. of fresh water and 90,100 gals. ballast water and will provide enough space for 12 crewmembers.
Safety features include a double hull, designed to help to protect the ATB’s 4,000-gal. fuel tank, and firefighting capabilities. Classed as a firefighting vessel (FFV-1), the vessel is well equipped to handle emergencies on board and can satisfy most requirements to have at least one FFV-classed tug escorting LNG tankers into port. Because there is no linkage between the tug and barge, the two can disconnect quickly in the event of emergency.
Expected time to build the ATB is between 18 to 30 months.
